This year (2000) a Dolly's Machine & Welding (Clinton, IL) 8-pt roll cage went in, a complete D&D Motorsports tube front-end with coil-overs and a new shortblock by JDC Engineering (AFM's head porter). This represented a lot of work and the project took about six months to complete.

The goal this year was to go with a Bassani 3" exhaust, complete with stepped longtube headers, cats and cat-back. An AFM N-66 cam was chosen and the goal was to be emissions legal with this more aggressive cam.

We ended up making a tick under 350 rwhp through the cats and tailpipes but unfortunately never had it emissions tested.
Click here for a description of the engine combo
and here for the dyno results.

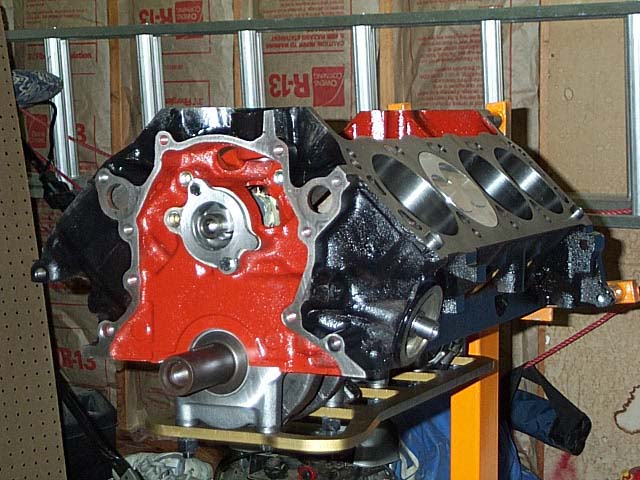

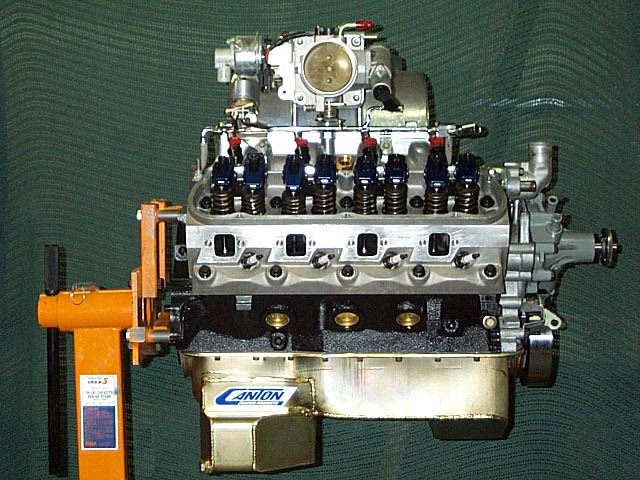

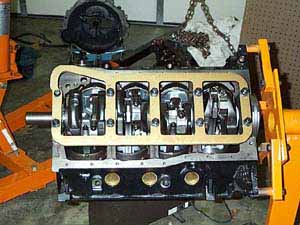

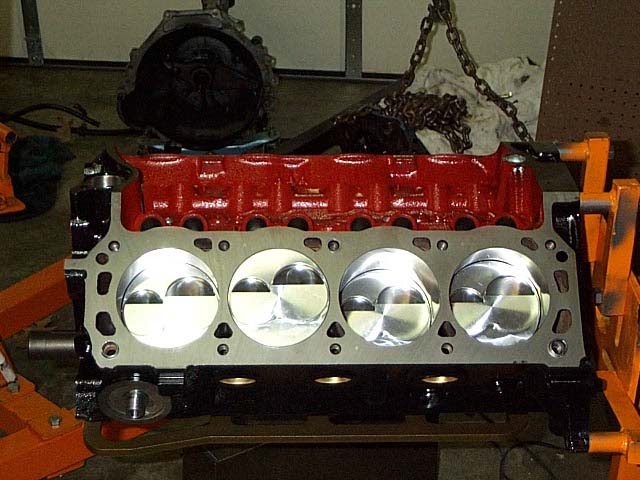

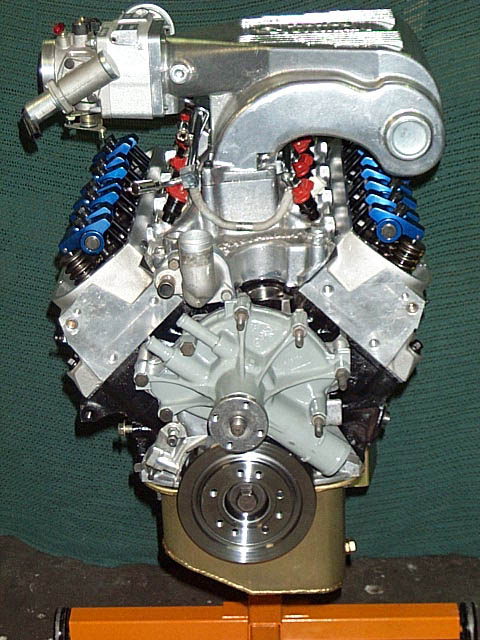

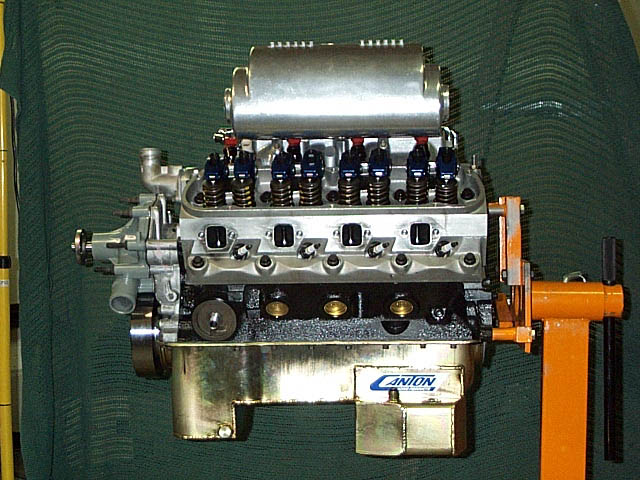

The New JDC 306 Being Built Up

(Click For Larger Views)



(Click for Larger View)




Picked up the Cobra from Dolly's Machining.

Motor is in and am now installing the Bassani stepped longtubes - not easy!! - but should be worth it.




Finally got to the dragstrip a couple of weeks ago. With no tune, about 125 miles on the motor and old slicks (spun badly all three passes) I went 12.18, 12.17 and 12.15 with a best of 114.28 mph. Not too bad considering it's going to take a while to get the chassis tuned correctly.

The next step was to make a run up to the AFM dyno and I think we made some decent power. It was the most hp Rick has measured on a naturallly aspirated motor through cats and tailpipes, at 349 (see dyno graph below).

An interesting thing was evident from the dyno runs. We made a mistake by running the 1.7 rockers with the particular valve springs we had in. The extremely high ramp speeds of the N-66 coupled with the 1.7 ratio floats the valves above 6,000rpm. I will be putting a set of 1.6's in and going back to the dyno shortly.


Dyno Results

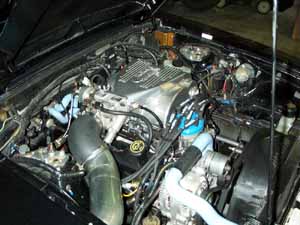

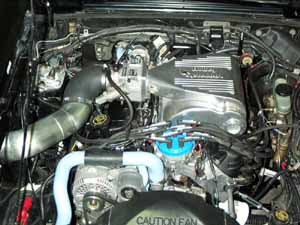

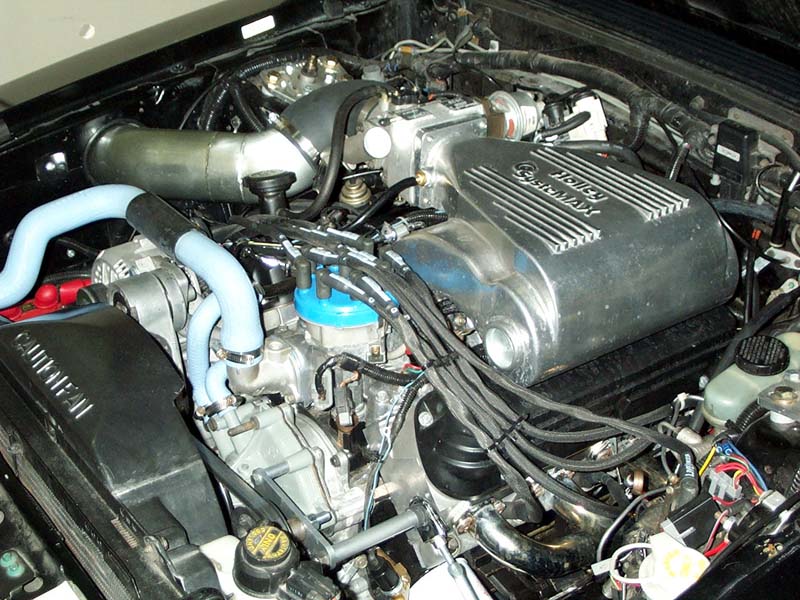

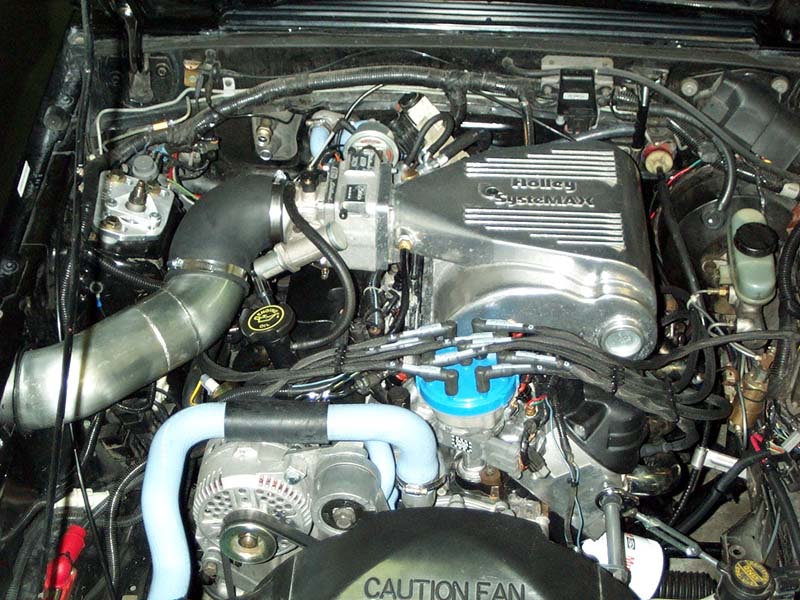

Final Installed 306

(Click for Larger Views)



  • JDC Engineering 306 Short Block Running 10.5:1 Compression
  • TFS Twisted Wedge Heads - AFM Stage III Ported
  • Ford Motorsport Roller Timing Set
  • Holley Systemax Intake
  • AFM N-66 Camshaft
  • AFM Hi-Volume Power Pipe
  • Edelbrock 75mm Throttle Body
  • Pro-M 77mm Shorty MAF Meter
  • March Street Alternator & Water Pump Pulleys
  • March Race Crank Pulley
  • Ford Motorsport SFI Crankshaft Damper
  • Removed A/C and Power Steering


  • 255 lph Fuel Pump
  • 30lb Injectors
  • AFM Adjustable Fuel Pressure Regulator
  • Vortech T-Rex Inline Fuel Pump


  • Crane HI-6DS Digital Ignition
  • Crane PS-92 Coil
  • Livewire Ignition Wires


  • Bassani 1-5/8" to 1-3/4" Stepped Long Tube Headers
  • Bassani 3" Cat X-Pipe
  • Bassani 3" Quiet Thunder Cat-Back


  • Dolly Machining 8-Pt Roll Cage
  • D&D Motorsports Tubular K-Member, A-Arms and Coil-Over Conversion
  • Granatelli Bump-Steer Kit
  • Flaming River Manual Steering Rack
  • Eibach Drag Launch Springs Front
  • AVO Adjustable Struts / Shocks
  • AFM Subframe Connectors
  • HPM MegaBite Jr. Lower Control Arms


  • 4.30 Rear Gear Ratio
  • Moser 31-Spline Axles
  • Ford Motorsport 31-Spline Traction Lok
  • Simpson 5-Pt Harness
  • Motorsport Steel Bellhousing
  • Hurst Billet Plus Shifter
  • Synthetics Throughout
  • Ford Motorsport Brass Radiator
  • 180 Degree Thermostat
  • AFM 150-Amp Alternator Kit
  • Cyberdyne Oil Press/Water Temp/Fuel Press/Volt Gauges
  • PMS (Programmable Management System)


November of 2000

Here is a pic of my first 11-sec pass (11.93 @ 115.3)
