Here is a list of my various naturally
aspirated combos over the years.
Clicking on a heading will take you to that combo's page.
| Combination |
TFS-R
359
(Solid Cam) |
363
(Holley EFI) |
||||||
| Date |
10/16/1999
|
11/05/2000
|
10/07/2001
|
10/06/2004
|
10/14/2005
|
5/16/2007
|
10/18/2014
|
5/28/2018
|

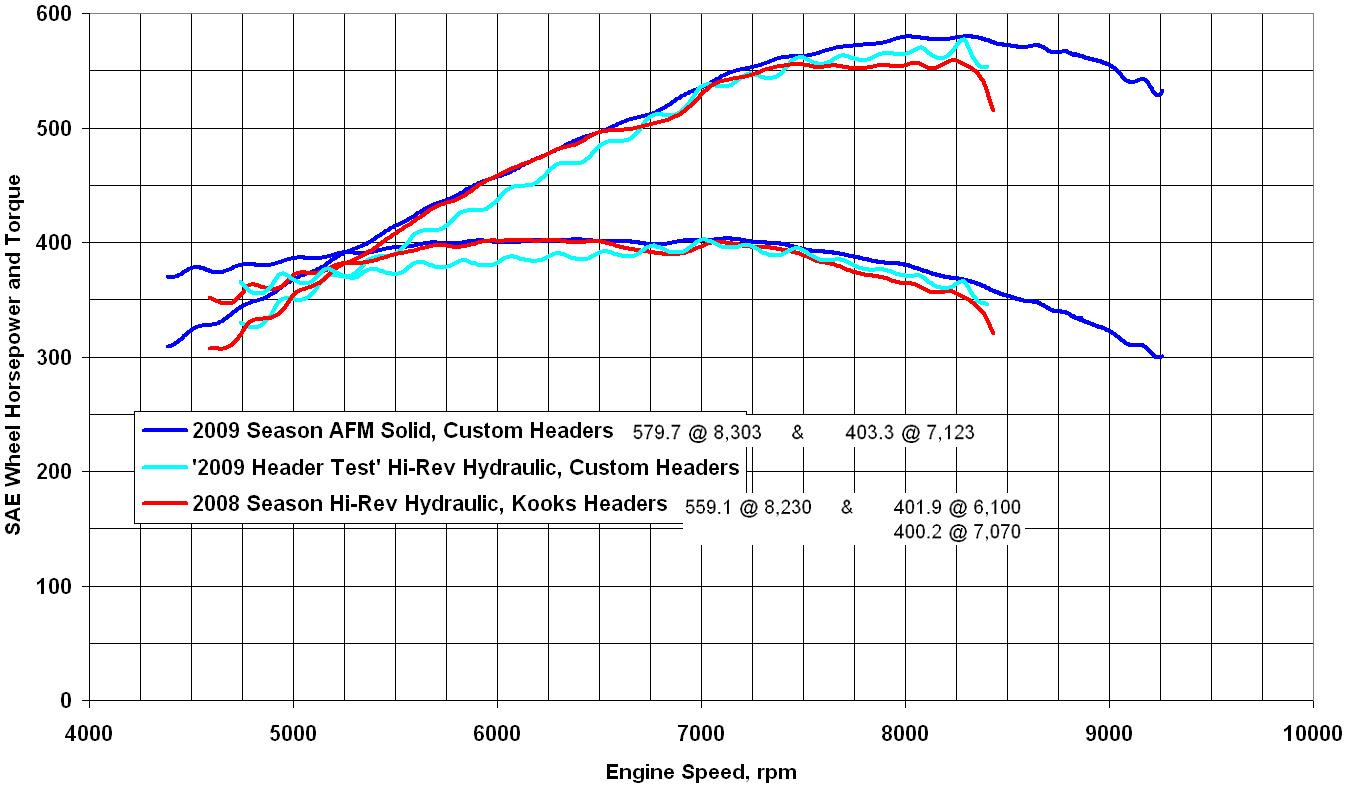

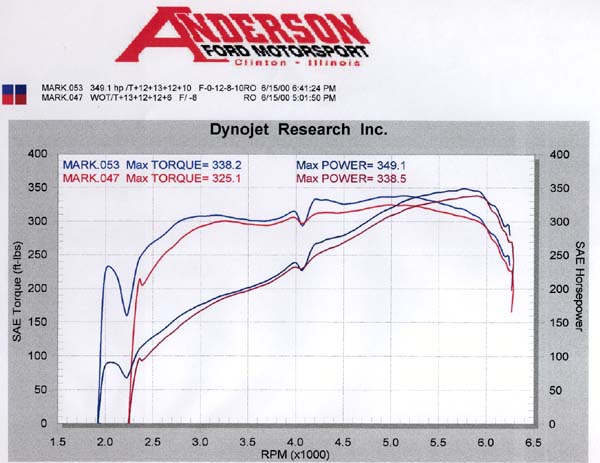

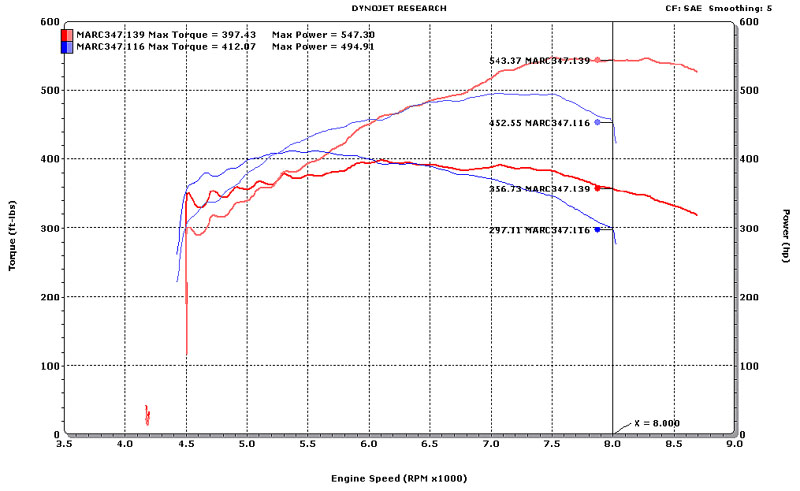

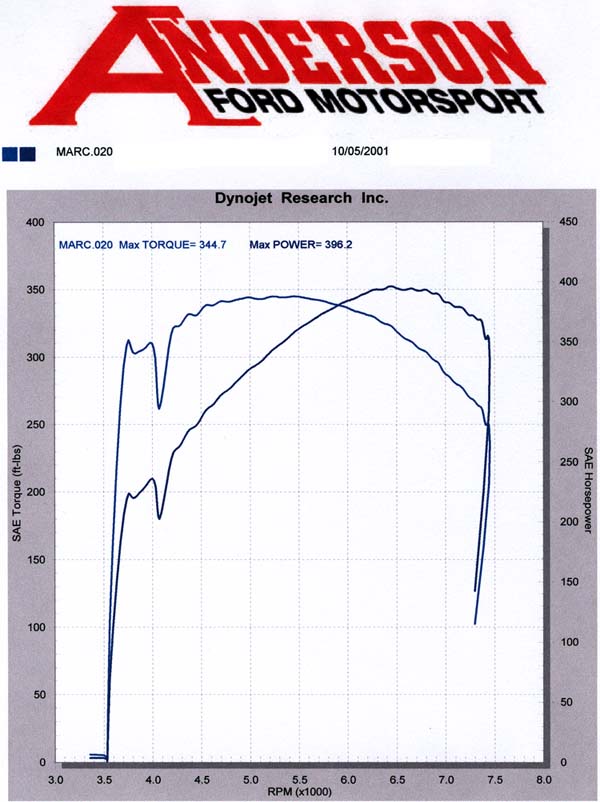

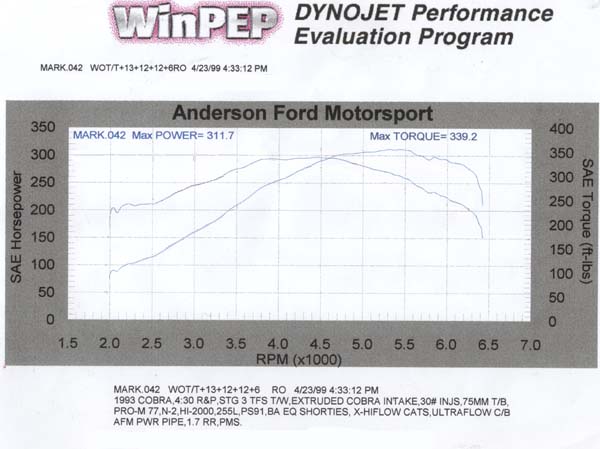

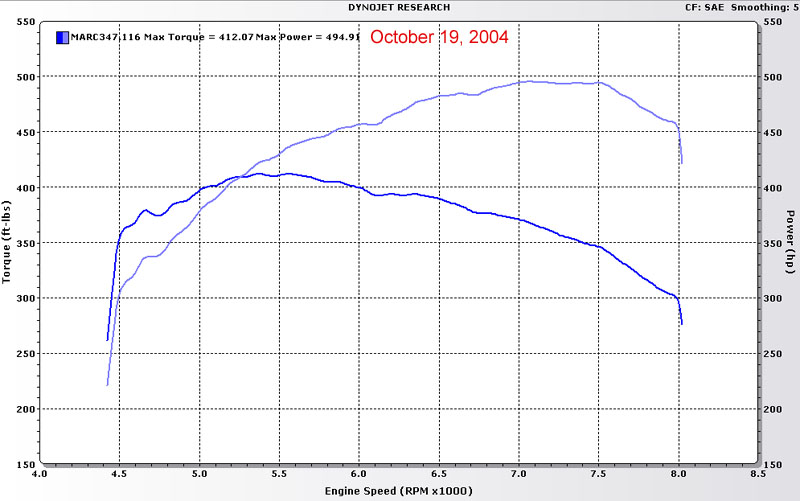

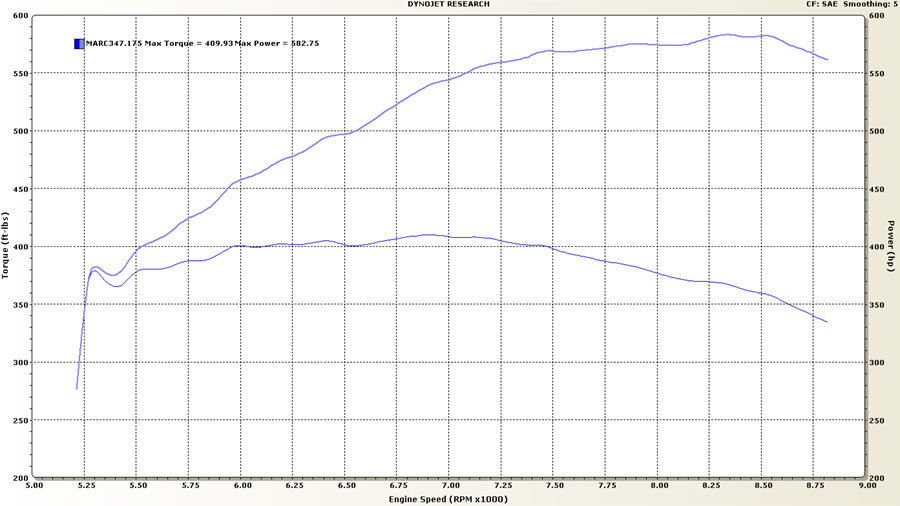

| RWHP/RWTQ (Click for Dynograph) |
590@7760/
441@6370 Dyno on 26 tires |
|||||||

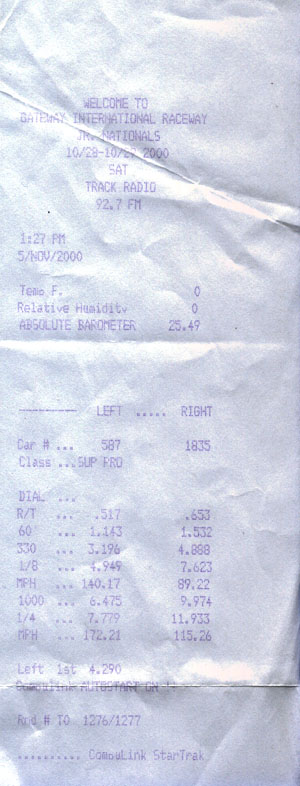

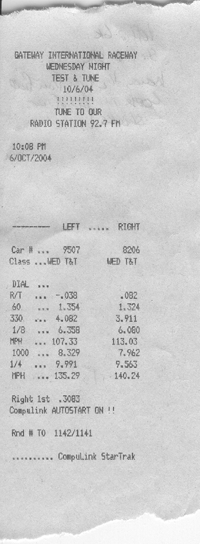

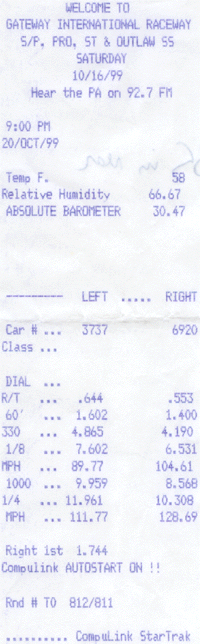

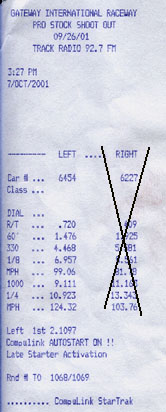

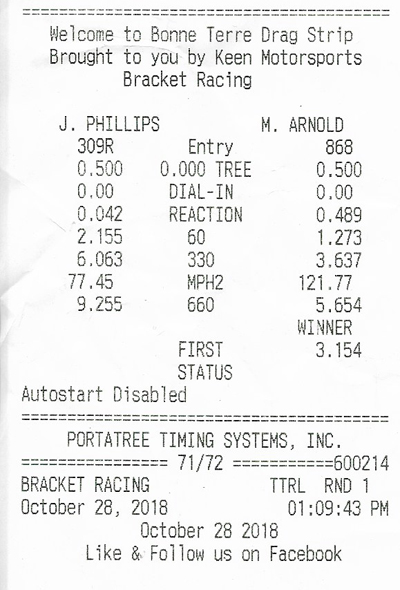

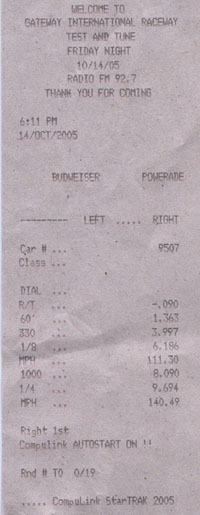

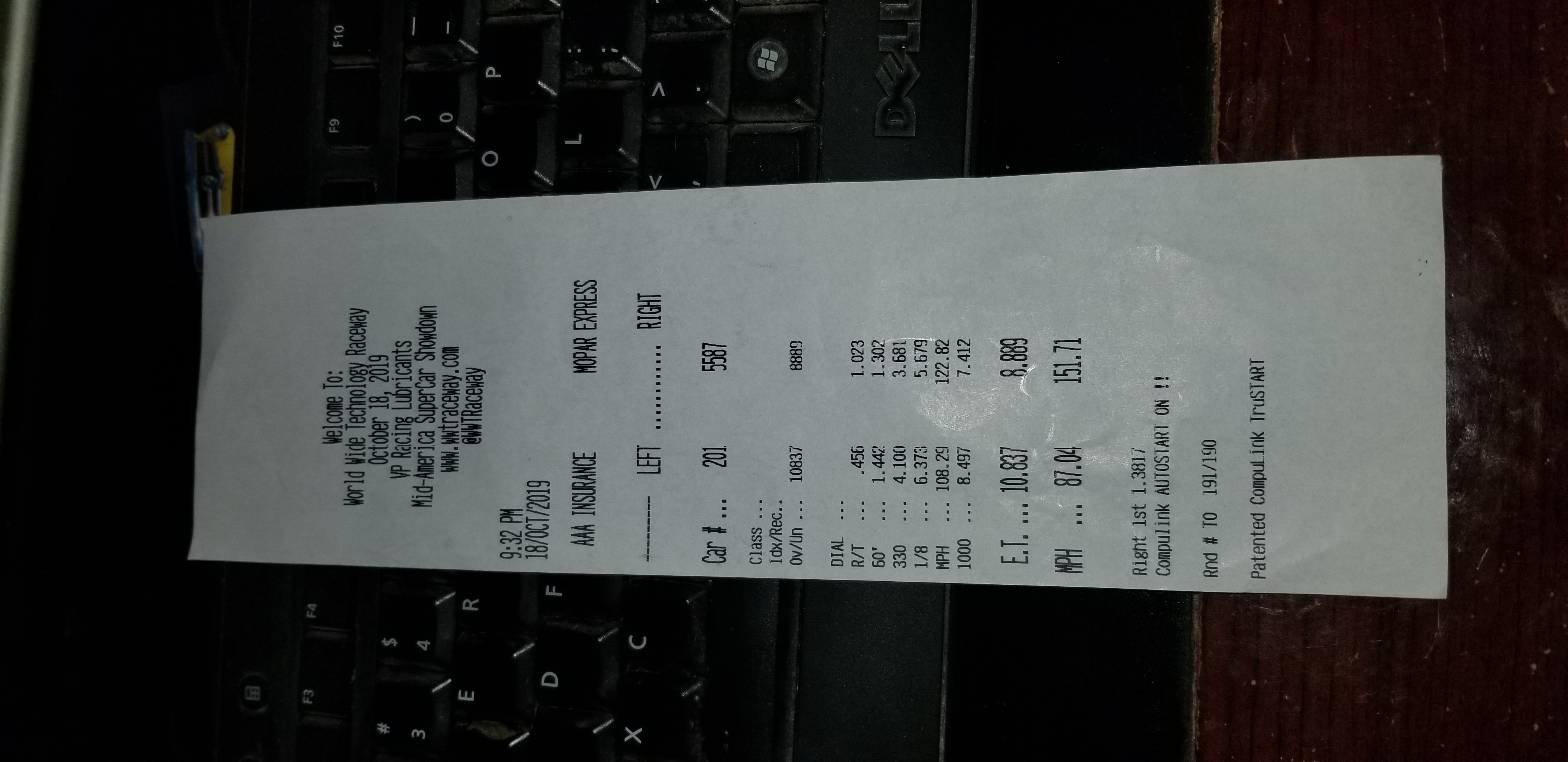

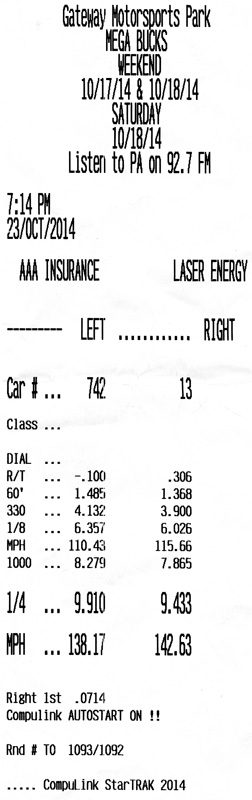

| ET/TS/60-ft (Click for Timeslip) |
||||||||

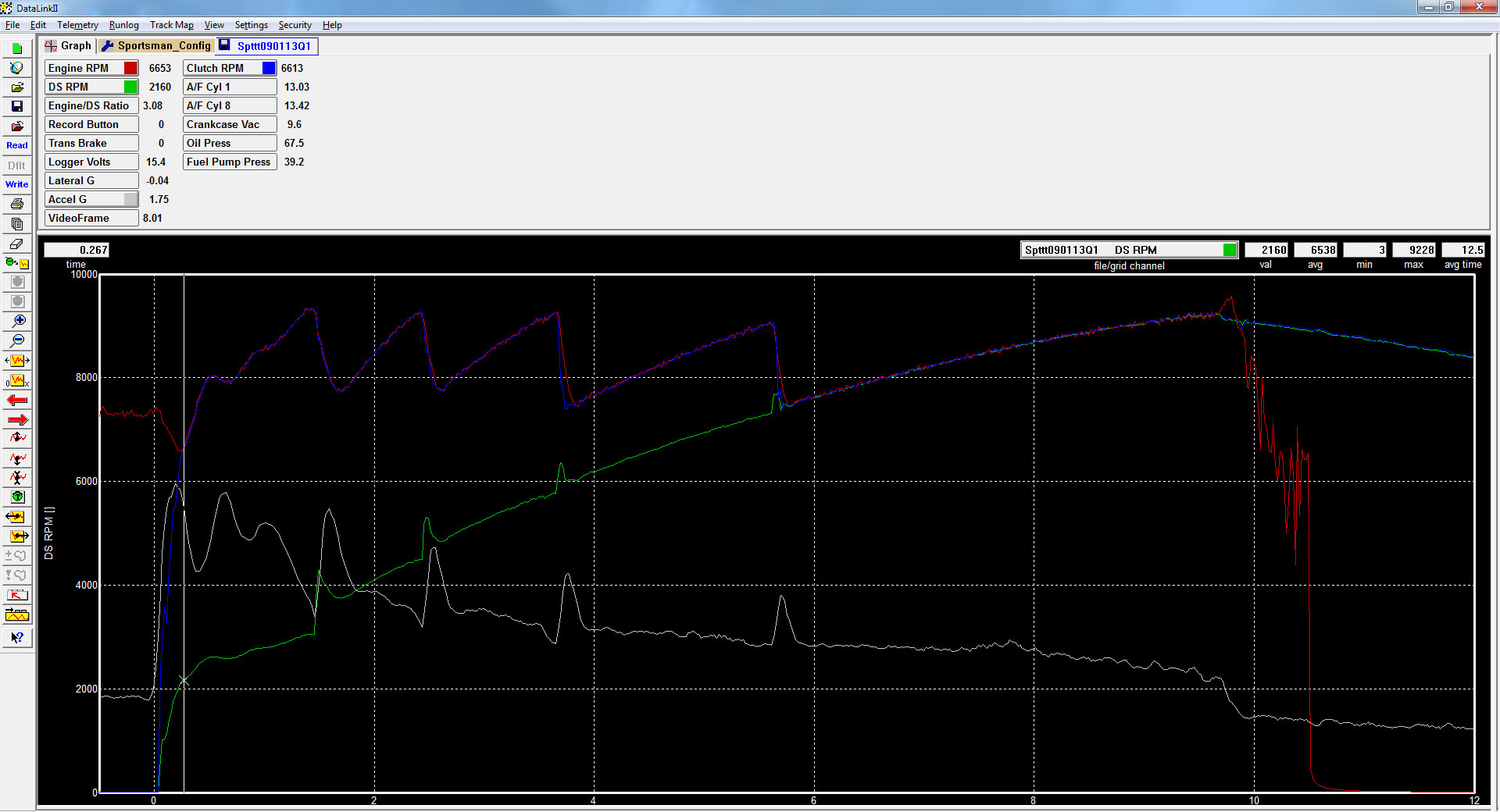

| Data Log |
---
|
---
|
---
|
---
|
---
|
---
|
||
|
Race Weight
|
3200
|
3200
|
3045
|
2890
|
2945
|
2950
|
2997
|
2800
|
|
Engine C.I.D.
|
302
|
306
|
306
|
347
|
347
|
359
|
359
|
363
|
|
Compression
|
9.0
|
10.5
|
12.3
|
13.2
|
14.0
|
14.3
|
13.9
|
15.1
|
|
Throttle Body
|
75mm
|
75mm
|
90mm
|
105mm
|
105mm
|
105mm
|
105mm
|
Wilson
4500
4-Hole (1610 cfm) |
|
Upper
Intake
Lower Intale |
Extrude Honed Cobra
Extrude Honed Cobra |
Holley Systemax
Holley Systemax |
Edelbrock Victor
Edelbrock Victor |
Vortech Mondo
AFM STG 3 TFS R |
Kuntz & Co
Super Victor EFI |
Kuntz & Co
Super Victor EFI |
Kuntz & Co
Super Victor EFI |
Kuntz & Co
Super Victor EFI |
|
AFM Power Pipe
|
AF-0105C
|
AF-0105C
|
AF-0112C
|
AF-0112C
|
AF-0112C
|
AF-0112C
|
n/a
|
n/a
|
|
Block
|
Stock
|
Stock
|
Stock
|
FRPP
R302
|
FRPP R302
|
FRPP
R302
|
FRPP
R302
|
FRPP
R302
|
|
Heads

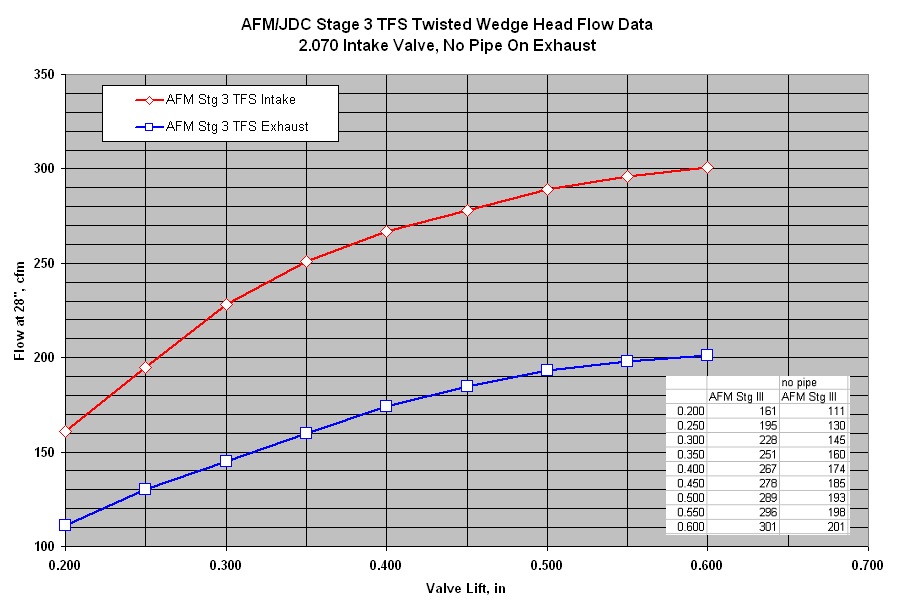

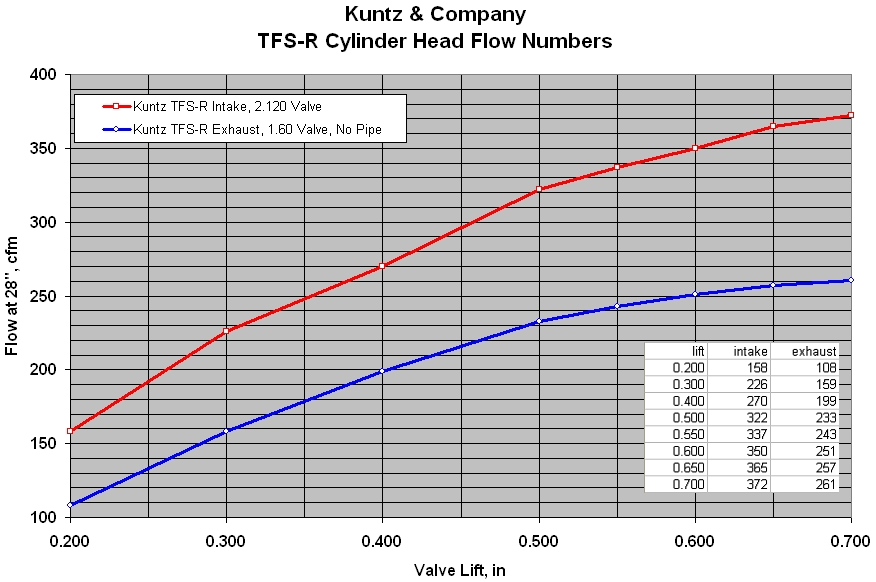

(Click for Flow Numbers) |
Kuntz & Co
TFS R Series |
|||||||
|
Camshaft
|
AFM
N-2
Hydraulic |
AFM
N-66
Hydraulic |
AFM
N-91 HiRev
Hydraulic |
AFM
N-113HL HiRev
Hydraulic |
AFM
N-113HL HiRev
Hydraulic |
AFM
N113HLSPHiRev
Hydraulic |
AFM
Custom Solid
|
Bullet
Custom Solid
|
|
Lifters
|
Stock
Hydraulic |
Stock
Hydraulic |
Stock
Hydraulic |
Stock
Hydraulic |
FRPP Link-Bar
Hydraulic |
FRPP
Link-Bar
Hydraulic |
GSP
Ultra Pro
Solid |
Morel
Bushed
Solid |
|
Rockers
|
FRPP
1.7 Stud
|
FRPP
1.7 Stud
|
FRPP
1.6 Stud
|
FRPP
1.6 Stud
|
TFS
1.7 Stud
|
T&D
1.6 Shaft
|
T&D
1.6 Shaft
|
T&D
1.6 Shaft
|
|
Mass Air Meter
|
Pro-M
77mm Shorty
|
Pro-M
77mm Shorty
|
Pro-M
80mm Shorty
|
Pro-M
80mm Shorty
|
Pro-M
80mm Shorty
|
Pro-M
80mm Shorty
|
Pro-M
80mm Shorty
|
Speed
Density
Holley EFI |
|
Fuel
Rails
|
Stock
|
Stock
|
Mallory
|
Mallory
|
Edelbrock
|
Edelbrock
|
Edelbrock
|
Edelbrock
|
| Fuel Regulator |
Stock
|
AFM
|
Mallory
|
Mallory
|
Aeromotive
|
Aeromotive
|
Aeromotive
|
Aeromotive
|
|
Fuel Injectors
|
30
lb/hr
|
30
lb/hr
|
38
lb/hr
|
38
lb/hr
|
42
lb/hr
|
42
lb/hr
|
42
lb/hr
|
48
lb/hr
|
|
Fuel
Pump
|
255
ltr/hr Intank
|
255
ltr/hr Intank,
T-REX |
255
ltr/hr Intank,
T-REX |
Aeromotive
1000
|
Aeromotive
1000
|
Aeromotive
1000
|
Aeromotive
1000
|
Aeromotive
1000
|
|
Fuel
Type
|
Pump
|
Pump
|
VP
C-12
|
VP
C-12
|
VP
C-14
|
VP
C-15
|
VP
LM Plus
|
VP
Q16
|
|
Headers
|
Bassani
Equal Shorties
1-5/8" |
Bassani
Stepped Long Tubes
1-5/8" to 1-3/4" |
Bassani
Stepped Long Tubes
1-5/8" to 1-3/4" |
Bassani
Stepped Long Tubes
1-3/4" to 1-7/8" |
Kooks
Stepped Long Tubes
1-7/8" to 2" 3-1/2" Collector |
Kooks
Stepped Long Tubes
1-7/8" to 2" 3-1/2" Collector |
Custom
Stepped Long Tubes
1-7/8" to 2" 3-1/2" Merge Collector |
Custom
Stepped Long Tubes 1-7/8" to 2" 3-1/2" Merge Collector |
|
Mid
Pipes
|
2-1/2"
Off-Road X
|
Bassani
3" Cat X
|
Bassani
3" Off-Rd X
|
None
|
None
|
None
|
None
|
None
|
|
Exhaust
|
Dynomax
2-1/2"
Ultra-Flow Catback |
Bassani
3" Quiet Thunder Catback
|
Bassani
3" Quiet Thunder Catback
|
Dynomax
3" Bullet
|
Dynomax
3-1/2" Bullet
|
Dynomax
3-1/2" Bullet
|
Dynomax
3-1/2" Bullet
|
Dynomax
3-1/2" Bullet
|
|
Computer
Control
|
AFM
PMS
|
AFM
PMS
|
AFM
PMS
|
AFM
PMS
|
AFM
PMS
|
AFM
PMS
|
AFM
PMS
|
Holley
Dominator
|
|
Ignition
|
Crane
HI-2000
PS-91 Coil |
Crane
HI-6DS
PS-92 Coil |
Crane
HI-6DS
PS-92 Coil |
Crane
HI-6DS
PS-92 Coil |
Crane
HI-6DS
PS-92 Coil |
Mallory
Hyfire VIIS
Promaster Coil |
Mallory
Hyfire VIIS
Promaster Coil |
MSD
7AL-2 Plus
MSD HVC II Coil |
|
Transmission
|
Stock
T5
|
Stock
T5
|
Pro-Motion
T5 Proshifted
|
Pro-Motion
GForce Helical T5 Dog Ring
|
Pro-Motion
GForce Helical T5 Dog Ring
|
Pro-Motion
TKO
Liberty Face Plate |
GForce
GF5R
Clutchless 5-Speed |
GForce
GF5R
Clutchless 5-Speed |
|
Clutch
|
Stock
|
Stock
|
McLeod
Sintered Iron
|
AFM
Stg 2
|
AFM
Stg 2
|
AFM
Stg 3
|
Single
10.5"
5135 HCF |
Single
10.5"
5135 HCF |
| Pressure Plate |
Stock
|
Stock
|
McLeod
3-Finger Adjustable
|
AFM
Diaphragm
|
AFM
Diaphragm
|
AFM
Diaphragm Stage 3
|
GForce
3-Finger Adjustable
|
GForce
3-Finger Adjustable
|
|
Flywheel
|
Stock
|
Stock
|
Billet
Steel
|
AFM
Aluminum
|
AFM
Aluminum
|
AFM
Aluminum
|
RAM
Aluminum
|
RAM
Aluminum
|
|
Rear
Gear Ratio
|
4.30
|
4.30
|
4.56
|
4.56
|
4.56
|
4.88
|
Ford
9" 5.14
|
Ford
9" 5.14
|
| Center Section |
FRPP
31-Spline
Trac Lock |
FRPP
31-Spline
Trac Lock |
Moser
33-Spline
Spool |
Moser
33-Spline
Spool |
Moser
33-Spline
Spool |
Moser
33-Spline
Spool |
Strange
35-Spline
Spool |
Strange
35-Spline
Spool |
| Axles |
Moser
4-Lug
31-Spline |
Moser
4-Lug
31-Spline |
Moser
5-Lug
33-Spline C-Clip Elimin Blocks |
Moser
5-Lug
33-Spline C-Clip Elimin Blocks |
Moser
5-Lug
33-Spline C-Clip Elimin Blocks |
Moser
5-Lug
33-Spline C-Clip Elimin Blocks |
Strange
5-Lug
35-Spline |
Strange
5-Lug
35-Spline |
| Rear Tires |
26x8.5
M/T Slicks
|
26x8.5
M/T Slicks
|
26x10
M/T Slicks
|
26x10
M/T Slicks
|
26x10
M/T Slicks
|
26x10
M/T Slicks
|
26x10
M/T Stiff Sidewall Slicks
|
28x10.5
M/T Stiff Sidewall Slicks
|
|
Front
Suspension
|
Eibach
Drag Springs
AVO Sngl Adj Struts |
D&D
AArms/CoilOver AVO Sngl Adj Struts Flaming Rvr Man Str Bump Steer Kit
|
D&D
AArms/CoilOver AVO Sngl Adj Struts Flaming Rvr Man Str Bump Steer Kit
Aerospace Brakes
|
D&D
AArms/CoilOver AVO Sngl Adj Struts Flaming Rvr Man Str Bump Steer Kit
Aerospace Brakes
|
D&D
AArms/CoilOver AVO Sngl Adj Struts Flaming Rvr Man Str Bump Steer Kit
Aerospace Brakes
|
D&D
AArms/CoilOver AVO Sgl Adj Struts Flaming Rvr Man Str Bump Steer Kit
Aerospace Brakes |
D&D
AArms/CoilOver Custom Koni Dbl Adj Struts Flaming Rvr Man Str Bump Steer
Kit
Aerospace Brakes |
D&D AArms/CoilOver Viking Dbl Adj Struts Wilwood Man Str Bump Steer Kit Aerospace Brakes |
|
Rear
Suspension
|
Eibach
Drag Springs
AVO Sngl Adj Shocks HPM LCA |
Eibach
Drag Springs
AVO Sngl Adj Shocks HPM LCA |
Eibach
Drag Springs AVO Snge Adj Shocks
HPM Junior LCA HPM Anti-Roll Bar Aerospace Brakes |
Eibach
Drag Springs AVO Sngl Adj Shocks
HPM Senior LCA HPM Anti-Roll Bar HPM Spher Rod UCA Aerospace Brakes |
Eibach
Drag Springs
AVO Sngl Adj Shocks HPM Senior LCA HPM Anti-Roll Bar HPM Spher Rod UCA Aerospace Brakes |
GT
Springs
AVO Sngl Adj Shocks HPM Senior LCA HPM Anti-Roll Bar HPM Spher Rod UCA Aerospace Brakes |
GT
Springs
Strange Sngl Adj Shocks TeamZ U&L CA Custom Anti-Roll Bar TeamZ 9" Housing Aerospace Brakes |
Hypercoil
Springs Viking Dble Adj Shocks TeamZ U&L CA Custom Anti-Roll Bar TeamZ 9" Housing Aerospace Brakes |
| Chassis |
Stock
K-Member
|
D&D
K-Member,
8-pt Cage |
D&D
K-Member,
8-pt Cage |
D&D
K-Member,
8-pt Cage |
D&D
K-Member,
8-pt Cage |
D&D
K-Member,
8-pt Cage |
D&D
K-Member,
8-pt Cage |
D&D
K-Member, 8-pt Cage |
